Radware AppXML

Secure, High-Performing XML Delivery


Radware AppXML OnDemand VL

Radware Products
AppXML Series
Radware AppXML
- 2 GE, 4GB Memory, Max 1 Gbps throughput, Single AC Power Supply, RoHS.
#19151316
Our Price: Call for Price!
Radware AppXML w/Dual Power Supply
- 2 GE, 4GB Memory, Max 1 Gbps throughput, Dual AC Power Supply, RoHS.
#19251316
Our Price: Call for Price!

Click here to jump to more pricing!

Overview:

Service-Oriented Architectures (SOA) and XML Web services allow enterprises to dynamically integrate their business processes and IT systems using open, standards-based specifications. Radware’s AppXML provides the foundational infrastructure enabling secure, high-performance XML and Web services communications for mission-critical applications.

Radware AppXML is a comprehensive Web services Security Gateway that functions as a trusted intermediary for exchanging secure Web Services between an enterprise and its business partners. It enables enterprises to achieve a higher ROI through secure e-business process integration.

The AppXML appliance combines hardware and software to improve the speed of XML document processing and secure XML-based communications. While XML provides a structured way to add context to data for sharing among applications, it is very data intensive and can take 30 to 50 times more bandwidth than other protocols. AppXML delivers performance gains by offloading tasks to dedicated hardware, off-loading servers, and is further enhanced by integrating AppXcel for acceleration of XML processing.

Web services security is enhanced as AppXML provides business-level protection from both non-deliberate and malicious attacks. Web services traffic is examined for attacks and malicious activity without altering or rewriting applications, quickly delivering complete and accurate application security without modifying Web services.

AppXML provides all of the administration and reporting capabilities needed to manage a web services security gateway deployment; including policy management, status monitoring, alerting, logging, and reporting activity.

Radware’s integrated approach enhances Web services and SOA deployments by:

  • Securing Web services and network from external and internal threats by validating XML structure, filtering malicious content, cloaking, and WSDL virtualization
  • Providing authentication, authorization, and auditing for Web services
  • Ensuring Web service message integrity and privacy through schema validation, SSL decryption, message encryption, and signing
  • Delivering further Security of Web services from Denial-of-Service attacks and scalability to accommodate growing capacity requirements
  • Ensuring business continuity and Web services global availability with global redirection capabilities
  • Enabling faster integration with Web services with protocol-mixing of XML and non-XML traffic, interoperability, XML processing and transformation
  • Speeding implementation with minimal disruption to application services through strong WSDL policy management, a proxy-based approach, interoperability and redundancy support

What Does AppXML Do?

AppXML is a comprehensive Web services gateway for enhancing service oriented architecture (SOA) deployments. It improves the speed of document processing and secures XML-based communications, functioning as a trusted intermediary for exchanging secure Web services between your enterprise and business partners.

AppXML offers administration and reporting capabilities needed to manage Web services security gateway deployment including policy management, status monitoring, alerts, logs and reporting activities.

What Makes AppXML Better?

By adding a layer of infrastructure between the network layers and applications, it simplifies, secures and accelerates XML and Web services deployments, helping you achieve a higher ROI. AppXML highlights include the following:

  • Improves the speed of XML document processing and secure XML-based communications by offloading tasks to dedicated hardware
  • Rich graphical reporting capabilities meets security, compliance (HIPAA, SOX) and content delivery concerns
  • Critical Web services security provides business-level protection from both unintended and malicious attacks without modifying Web services
  • Flexible content-routing based on XML and Web Services attributes
  • Comprehensive management capabilities and regulatory compliance reporting delivers complete management of a Web services security gateway
  • High availability is realized through real-time identification of faulty services and automatic switching to a functional AppXML in the farm

Comprehensive Gateway for Enhancing SOA Deployments

Designed specifically to help customers tackle the challenges of deploying web services and service oriented architectures (SOA), AppXML is an appliance that couples our APSolute application delivery platform and Forum Systems’ industry-leading XML Sentry software. It improves the speed of XML document processing and secure XML-based communications by offloading tasks to dedicated hardware.

AppXML functions as a trusted intermediary for exchanging secure web services between an enterprise and its business partners. By adding a layer of infrastructure between the network layers and applications, it simplifies, secures and accelerates XML and web services deployments helping enterprises to achieve a higher ROI.

Using AppXML with AppDirector and AppXcel promises fast, reliable and secure delivery of mission-critical web-enabled services and ensures secure and continuous on-line business activity. AppDirector’s extensive health monitoring capabilities enable real-time identification of faulty services. These services are automatically bypassed and traffic is switched to a fully functional device. AppXcel provides the additional acceleration and performance enhancements required by today’s global 2000 companies.

AppXML provides the administration and reporting capabilities needed to manage a web services security gateway deployment including policy management, status monitoring, alerts, logs and reporting activities. AppXML’s rich graphical reporting capabilities meets security, compliance (HIPAA, SOX) and content delivery concerns.

AppXML Web Services Gateway:

AppXML industry specific solutions include: government compliance, secure electronic forms, secure partner integration, secure partner collaboration, electronic notary, evidence repository, as well as secure service oriented architectures (SOA).

  • Critical Web Services Security
    AppXML provides business-level protection from both non-deliberate and malicious attacks. Web services traffic is examined for attacks and malicious activity without altering or rewriting applications. AppXML gives complete and accurate application security without modifying Web services.

  • Enhanced Performance
    Performance gains are achieved by offloading tasks to dedicated hardware, off-loading servers, and further enhanced by the integrated hardware engines for compression, caching and SSL offloading.

  • Comprehensive Management Capabilities with Regulatory Compliance Reporting
    AppXML provides all administration and reporting capabilities needed to manage a web services security gateway deployment, including policy management, status monitoring, alerting, logging, and reporting activity. AppXML's rich graphical reporting capabilities meets security, compliance (HIPAA, SOX) and content delivery concerns.

  • Seamless Deployment and Integration without Changing Existing Network
    AppXML can be transparently activated to expand the functionality of Radware's application delivery solutions without making network architecture, router or server changes. Radware's approach delivers an integration solution for external traffic with internal infrastructure using protocol conversions, transformations and smart routing.

  • High Availability with Real-Time Failure Bypassing
    AppDirector's extensive health monitoring capabilities enable real-time identification of a faulty AppXML service, automatically bypassing it and switching the traffic to a fully functional AppXML in the farm.

Features and Benefits:

Feature Benefits
Ensures Interoperability and Security
  • Validates XML structure and schema
  • Filters malicious content
  • Hides web services
  • Supports large attachments
  • Ensures interoperability
Enhances Security and Manageability
  • Authenticates fine-grained WSDL/SOAP/XML
  • Performs access control on business API's
  • Provides Identity and entitlement administration
  • Supports identity management integration (add-on feature)
Improves Performance and Security
  • Provides high-performance XML processing and element-level encryption
  • Supports electronic (digital) signatures
  • Certified for DoD PKI
  • Supports WS-Security 2004
Provides Acceleration and Increased Performance
  • Delivers content-based routing
  • Supports protocol-mixing with message queue
Streamlines Web Services Deployments
  • Transforms synchronous web services to an asynchronous process for batch-processing
  • Performs content-based redirection
  • Offloads XML processing from servers
  • Accelerates SSL transport for web services
Protects Users from Web Services Security Risks
  • Authenticates, authorizes and audits clients
  • Validates XML messages for conformance and potential XML vulnerabilities
  • Encrypts, decrypts and digitally signs and validates signatures of XML messages
  • Removes sensitive data from XML messages
  • Delivers content-sensitive logging to meet granular compliancy needs

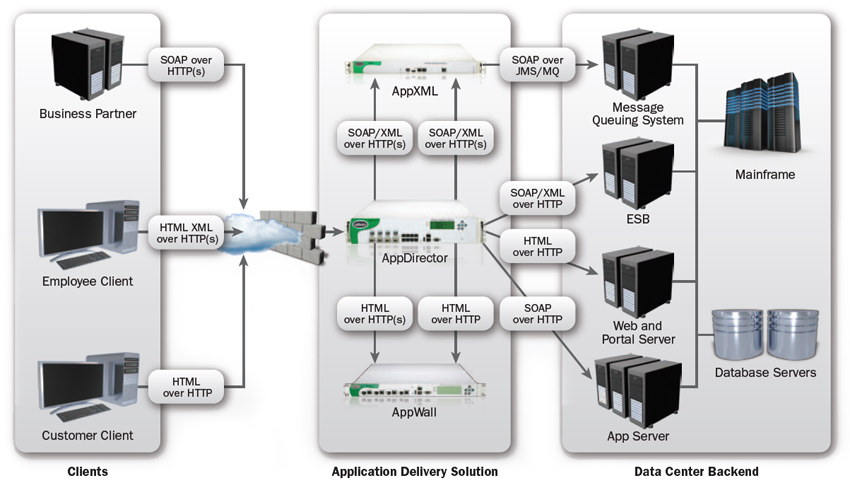

Deployment:

Integrated Solution Protects, Accelerates and Streamlines Web Services Deployments

AppXML couples Radware’s APSolute application delivery platform with industry-leading software to improve the performance of XML message processing while greatly enhancing the security of Web services and SOA deployments.

Combining AppXML with AppDirector and AppXcel provides a comprehensive set of security, acceleration, and optimization services to ensure the fast, reliable, and secure delivery of mission-critical web-enabled services to ensure secure and continuous on-line business activity. AppDirector’s extensive health monitoring capabilities enables real-time identification of a faulty service, and will automatically bypass it and switch the traffic to a fully functional device. AppXcel provides the additional acceleration and performance enhancements desired by Global 2000 firms.

Radware solutions for global, enterprise SOA environments deliver on critical business criteria: application availability, performance, manageability and security, The integrated Radware solution performs essential application delivery functions including global traffic management, traffic re-direction, health monitoring, SSL offloading, TCP optimization, caching, compression, and application security. Through an integrated behavioral DoS module, Radware ensures 100 percent transaction processing and delivery -- without performance degradation.

Integrated Solution Protects, Accelerates and Streamlines Web Services Deployments

Technical Specifications:

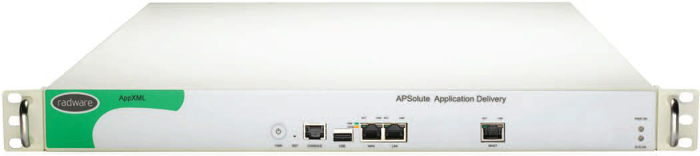

AppXML

  • Designed for medium to large enterprises
  • Provides global device management
Features AppXML
Memory 4 GB
Network Interfaces 3 (two for traffic and one for management)
Dimensions
  • Width: 424 mm (17 in.)
  • Depth: 457 mm (18 in.)
  • Height: 44 mm (1.7 in.)
  • EIA Rack or Standalone: 482 mm (19 in.)
Weight 7.7 kg (17 lbs)
Environmental
  • Operation temperature: 0°C to 40°C (32°F to 104°F)
  • Relative humidity: 5% to 95% non-condensing
Power
  • Auto-range supply: 100 V to 240 V
  • DC: 47 Hz to 60 Hz
  • Power consumption: 175 W
  • Heat dissipation: 597 BTU/h
Certifications
  • Safety: EN 60950; UL 1950, CSA 22.2 No 950
  • EMI: EN 55022, FCC Part 15B Class B

Documentation:

Download the Radware AppXML Datasheet (PDF).



Radware AppXML
- 2 GE, 4GB Memory, Max 1 Gbps throughput, Single AC Power Supply, RoHS.
#19151316
Our Price: Call for Price!
Radware AppXML w/Dual Power Supply
- 2 GE, 4GB Memory, Max 1 Gbps throughput, Dual AC Power Supply, RoHS.
#19251316
Our Price: Call for Price!
AppXML Software
CA SiteMinder identity adaptor for AppXML
#915125
Our Price: Call for Price!
HP Select Access identity adaptor for AppXML
#915126
Our Price: Call for Price!
IBM Tivoli Access Manager identity adaptor for AppXML
#915128
Our Price: Call for Price!
Oracle COREid identity adaptor for AppXML
#915129
Our Price: Call for Price!
RSA Clear Trust identity adaptor for AppXML
#915134
Our Price: Call for Price!
Sun JSAM Access identity adaptor for AppXML
#915136
Our Price: Call for Price!
WS-Trust Authentication Access identity adaptor for AppXML
#915139
Our Price: Call for Price!
BEA JMS messaging adaptor for AppXML
#915124
Our Price: Call for Price!
IBM WebSphere MQ messaging adaptor for AppXML
#915127
Our Price: Call for Price!
Sun Java Message Queue adaptor for AppXML
#915135
Our Price: Call for Price!
Tibco EMS messaging adaptor for AppXML
#915137
Our Price: Call for Price!
Tibco RV messaging adaptor for AppXML
#915138
Our Price: Call for Price!
